🔭 Observability Stack

An application-independent Grafana LGTM stack. One deployment on a VPS serves every project. Onboarding a new FastAPI + Postgres app is four steps: copy `agent/`, add a few Docker labels, `uv add obstack`, one function call.

🏗️ Architecture

✨ What You Get

• 📊 Metrics, logs and traces — Prometheus, Loki and Tempo behind one Grafana, all three carrying the same identity labels so you can jump between them
• 🔐 One authenticated ingest host — ingest.<domain> exposes three paths and nothing else is reachable from outside
• 🏷️ Docker-label discovery — the agent finds scrape targets and log streams from labels; no per-app agent config
• 💾 Outage-proof — the agent buffers all three signals to disk and replays them with their original timestamps
• 🐍 A four-step SDK — obstack wires up a FastAPI app in one call
• ✅ Verified, not assumed — make verify-signals / verify-dashboards / verify-resilience fail the build rather than a graph three months later
• 🐛 Opt-in error tracking — GlitchTip, separate so a metrics-only stack doesn't pay for it

Important

Read docs/labels.md first. The four identity labels — app, service, env, host — are the contract everything else depends on. If any other document disagrees with it, that one wins.

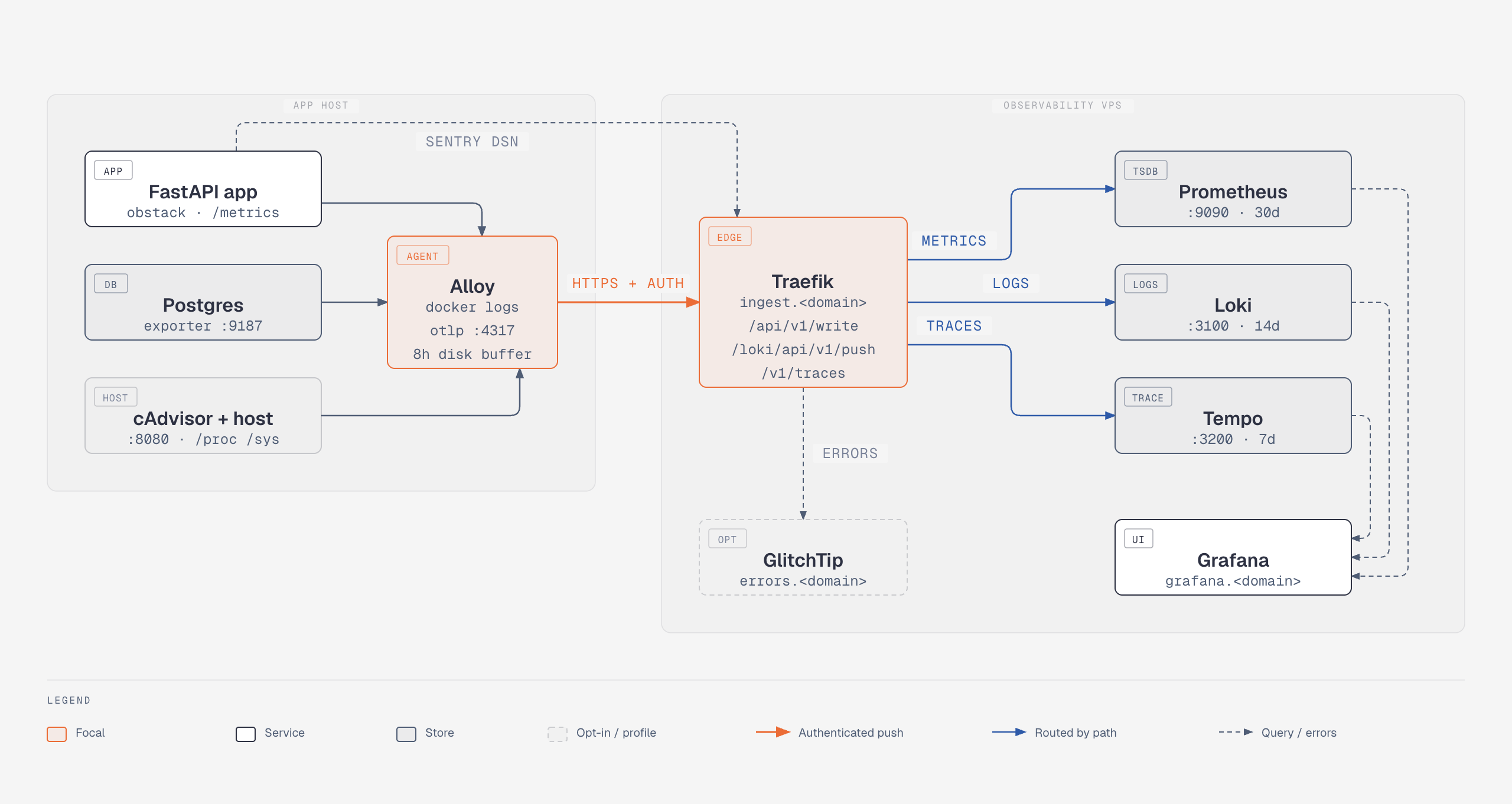

🏗️ The Two Halves

Both are deployable independently.

Server — Traefik fronts Grafana and GlitchTip (compose.glitchtip.yml) on public subdomains, plus a single ingest.<domain> host exposing three authenticated paths that proxy to Prometheus remote-write, Loki push, and Tempo OTLP/HTTP. Nothing else is reachable from outside.

Agent — one Alloy container per app host. It discovers scrape targets and log streams from Docker labels, runs optional cAdvisor / postgres-exporter via Compose profiles, receives OTLP traces from the local app, and pushes everything to ingest.<domain> over HTTPS with basic auth and local buffering. The app exposes nothing publicly.

compose.lgtm.yml on its own is the deployed shape: nothing published, each service building a small image with its config baked in, and Traefik routing driven by container labels. That is what a deploy points at. Set OBS_EDGE_NETWORK / OBS_EDGE_EXTERNAL to put it behind a proxy the host already runs, or add compose.edge.yml to bring your own. Publishing no port is deliberate: it is what stops the authenticated ingest path from being optional.

🚀 Quickstart

cp .env.lgtm.example .env.lgtm   # set GF_ADMIN_PASSWORD and OBS_DOMAIN

make help          # list targets
make lgtm-up       # start the LGTM stack
make demo-up       # start the local end-to-end demo (app + db + loadgen)
make verify-signals   # assert every signal arrives, with the label contract intact
make verify-dashboards   # assert every panel on every dashboard has data

Tip

make lgtm-up adds compose.lgtm.local.yml, which publishes Grafana :3000, Prometheus :9090, Loki :3100 and Tempo :3200 / :4317 / :4318 on 127.0.0.1 and bind-mounts the configs so an edit takes effect without a rebuild.

Error tracking is opt-in and separate — five more containers and a second Postgres, which a stack that only wants metrics, logs and traces should not pay for:

cp .env.glitchtip.example .env.glitchtip   # set SECRET_KEY and POSTGRES_PASSWORD
make glitchtip-up                          # GlitchTip on 127.0.0.1:8001, errors.<domain> via Traefik
./scripts/verify-errors.sh --bootstrap     # mint an organisation, a project and a DSN
OBS_ERROR_DSN=<the printed DSN> make demo-up
make verify-errors                         # assert /boom becomes an issue, correctly tagged

📦 Onboarding an App

# 1. copy agent/ into the app repo as observability/, then label the containers
services:
  api:
    labels:
      obs.service: api
      obs.metrics.port: "8000"
      obs.metrics.path: /metrics
    expose:
      - "8000"          # the port has to be exposed; publishing it is not needed

# 2. run the agent alongside the app
docker compose -f compose.lgtm.yml -f observability/compose.agent.yml up -d

# 3. add the SDK
uv add "obstack[grpc,sqlalchemy]"

# 4. wire it up
from obstack import setup_observability

setup_observability(app, engine=engine)

🧯 Surviving an Outage

The agent buffers all three signals to disk and replays them with their original timestamps, so a VPS that is down for a while leaves a continuous line rather than a hole.

Warning

Each buffer has a server-side window that has to be at least as generous — see the table in agent/README.md. A replay the server rejects as too old is worse than no buffer at all: it looks like it worked.

make verify-resilience   # stops the server for 15 min, asserts no gap in any signal

💾 Backup & Restore

make backup                                   # grafana.db + GlitchTip's database
make backup ARGS="--all --keep 7"             # ...plus the three TSDBs, keeping the newest 7
make restore DIR=backups/<stamp>              # dry run: prints what it would replace
make restore DIR=backups/<stamp> ARGS=--yes   # and now for real

Caution

make restore is a dry run until you add ARGS=--yes. Read what it prints before you do.

Dashboards are files in git, so the irreplaceable state is smaller than it looks: grafana.db (the admin account, users, annotations, alert state) and GlitchTip's Postgres. Those two are the default set. The TSDBs are opt-in — they are retention-bounded and 25 GB-capped, and a routine backup should not be tens of gigabytes. Each is copied the way its storage engine allows rather than all three the same way; scripts/backup.sh's header says which and why.

📊 Dashboards

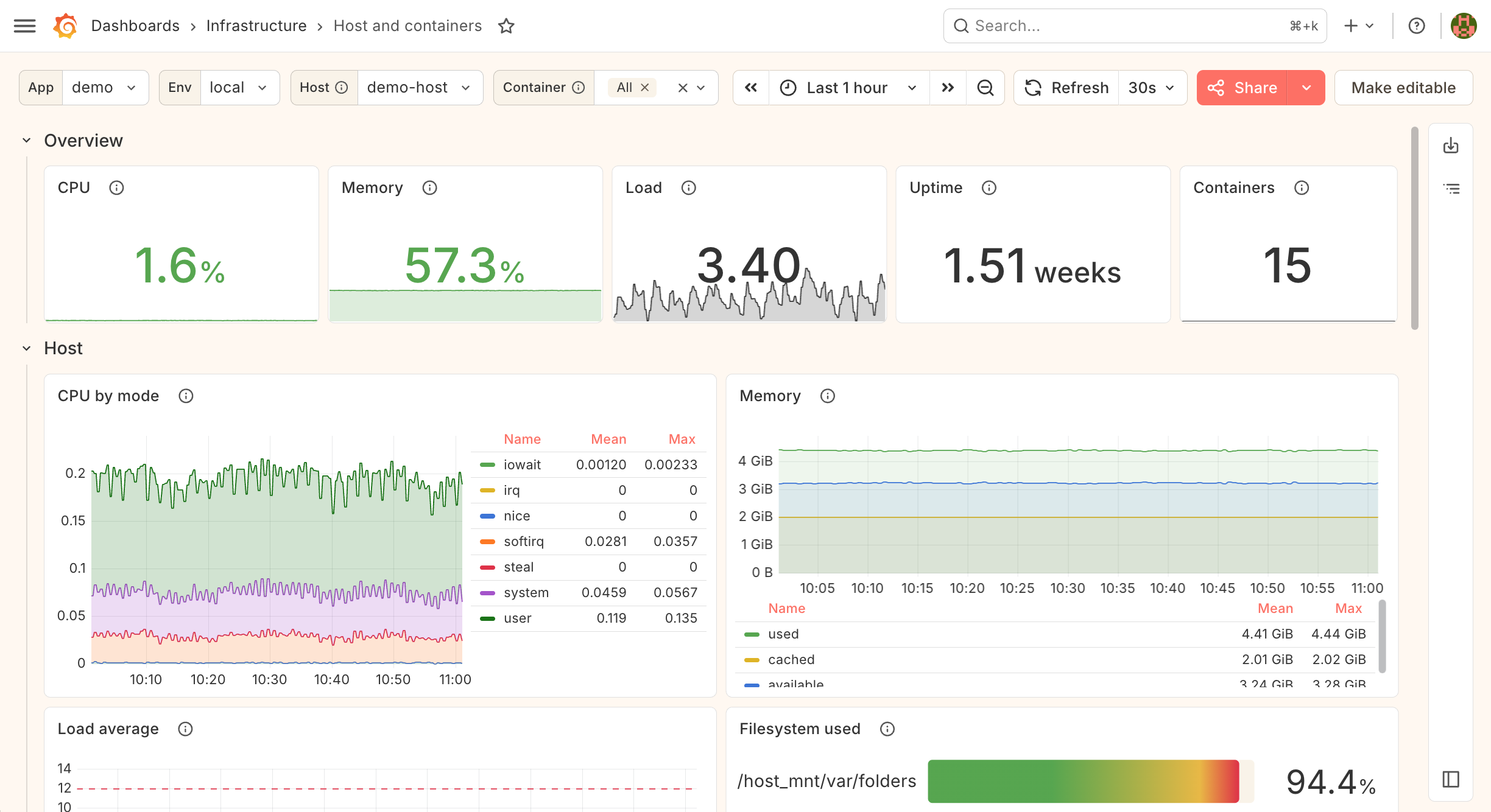

Grafana comes up with all three datasources and the Applications / Databases / Infrastructure folders already provisioned. They are read-only by design — dashboards are files in git, not UI state.

Which is why make verify-dashboards exists: an expression that returns nothing renders as an empty graph, indistinguishable from a quiet period, and a dashboard nobody can edit in the browser is a dashboard nobody notices has gone blank. It runs every panel's query against the demo and fails on any that comes back empty, so a rename in docs/labels.md breaks the build rather than a graph three months later.

📚 Documentation

All of it is on the documentation site, and in this repo:

docs/labels.md	Read this first. The label contract everything else depends on.
sdk/obstack/README.md	The Python SDK: settings, metric names, what one call gets you.
agent/README.md	The agent: labels to add, what it collects, what will bite you.
demo/	A worked example of the four steps above — copy it when onboarding.
docs/onboard-app.md	The four-step diff in detail.
docs/deploy-server.md	Provisioning, DNS, first up, clock sync.
docs/local-dev.md	The demo stack, the verify scripts, macOS caveats.
docs/operations.md	Retention, backup/restore, cardinality, upgrades.
